Die Casting Mold Design & Manufacturing for High-Volume Metal Parts
Die casting mold development is where productivity, part quality, and long-term manufacturing cost all come together. A strong die casting mold is not only about making parts — it is about making them repeatedly, efficiently, and with better control over dimensional consistency and production stability.
A die casting program only works when tooling and production logic are aligned from the start
For die cast parts, mold quality directly affects cycle efficiency, dimensional repeatability, flash control, cavity life, and downstream machining or finishing cost. That is why die casting mold development should be treated as a production strategy decision, not just a tooling purchase.
What makes a die casting mold commercially valuable
A good die casting mold should do more than survive production. It should help improve shot stability, support cleaner cavity filling, reduce downtime, and keep long-run unit economics under control.
- Longer mold life supports more stable long-run production and better tooling amortization
- Better precision control helps reduce part variation, flash issues, and downstream correction cost
- Faster delivery rhythm matters when programs are under launch pressure or replacement tooling is urgent
- After-sales and trial support matters because die casting programs rarely succeed by mold handoff alone
Mold Life
Tool steel choice, heat treatment, cooling design, and cavity protection all influence how well the mold performs over repeated cycles.
Dimensional Stability
Precision machining and better flow-related design help reduce variation and improve repeatability across production runs.
Cycle Efficiency
Cooling strategy, runner design, and process coordination directly affect cycle time and overall output efficiency.
Production Readiness
A mold is only valuable when it supports smoother mass production, not just when it looks good in the tool room.
Different alloys require different casting logic and tooling expectations
Material selection in die casting is not just about strength. It affects fluidity, shrinkage behavior, cycle design, surface quality, machining requirement, and the target application environment.
Common Die Casting Material Directions
Final material recommendation depends on part geometry, mechanical requirement, weight target, appearance expectation, and end-use environment.
| Material Type | Typical Characteristics | Common Applications |
|---|---|---|

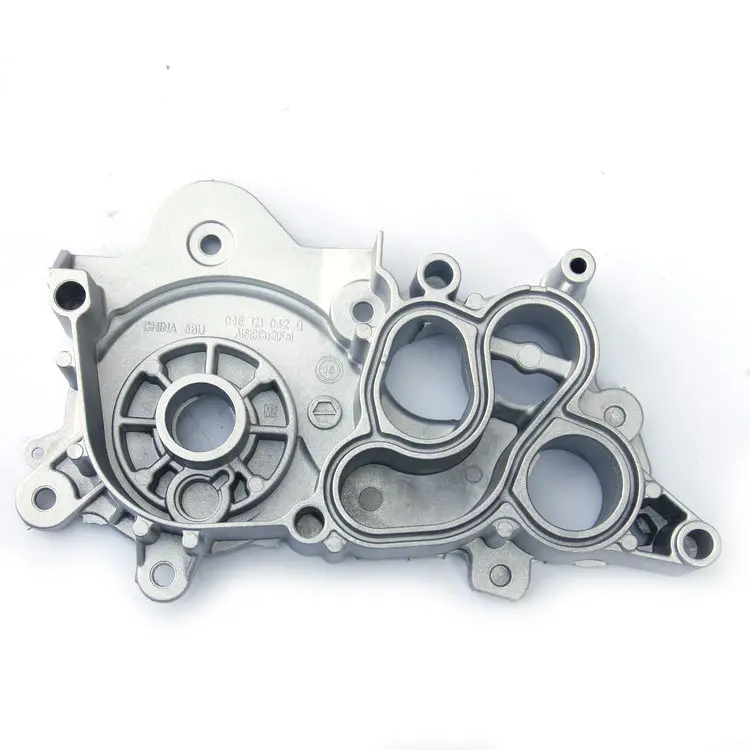

| Aluminum Alloys | Good strength-to-weight balance, strong casting versatility, broad industrial usage | Automotive parts, housings, structural and electronic components |
| Zinc Alloys | Good dimensional accuracy, smoother detail, suitable for smaller precision parts | Locks, hardware, decorative parts, functional precision components |
| Magnesium Alloys | Lightweight with strong value in weight-sensitive applications | Portable electronics, automotive lightweighting, selected structural applications |
| Copper-Based Alloys | Useful where conductivity and thermal performance matter more | Electrical connectors, heat-related or conductive components |
Why buyers look beyond the mold itself
The tooling partner matters because die casting is not only a machining job. It is a combined problem involving mold structure, alloy behavior, flow balance, cooling control, post-processing, and mass production reality.
Technical Strength
Tooling decisions should support actual die casting performance, not just drawing completion.
- Attention to mold structure and manufacturability from the early stage
- Flow-related analysis and optimization thinking where needed
- More practical alignment between tool build and production outcome
Quality Assurance
In die casting, poor tool control usually turns into part defects, downtime, or unstable output later.
- Focus on cavity-critical dimensions and core areas that matter in production
- Trial validation helps reduce surprise during ramp-up
- Better confidence when moving from tooling into real production use
Production-Oriented Support
A useful mold supplier helps customers think about efficiency, maintainability, and production continuity too.
- Support that considers mold life and future serviceability
- Better coordination with downstream machining or finishing needs
- More realistic view of total manufacturing performance
Long-Term Project Value
The real benefit is not only getting one mold completed, but reducing the future cost of instability, rework, and delay.
- Lower risk of avoidable production problems
- Better readiness for mass production support
- Improved balance between tooling cost and production output
In simple terms, customers choose a die casting mold partner for the same reason they choose any good manufacturing partner: fewer production surprises, stronger process control, and better long-run economics.
